6 Inch Straight Leaf Spring Shackle Motobilt - MB1527-60

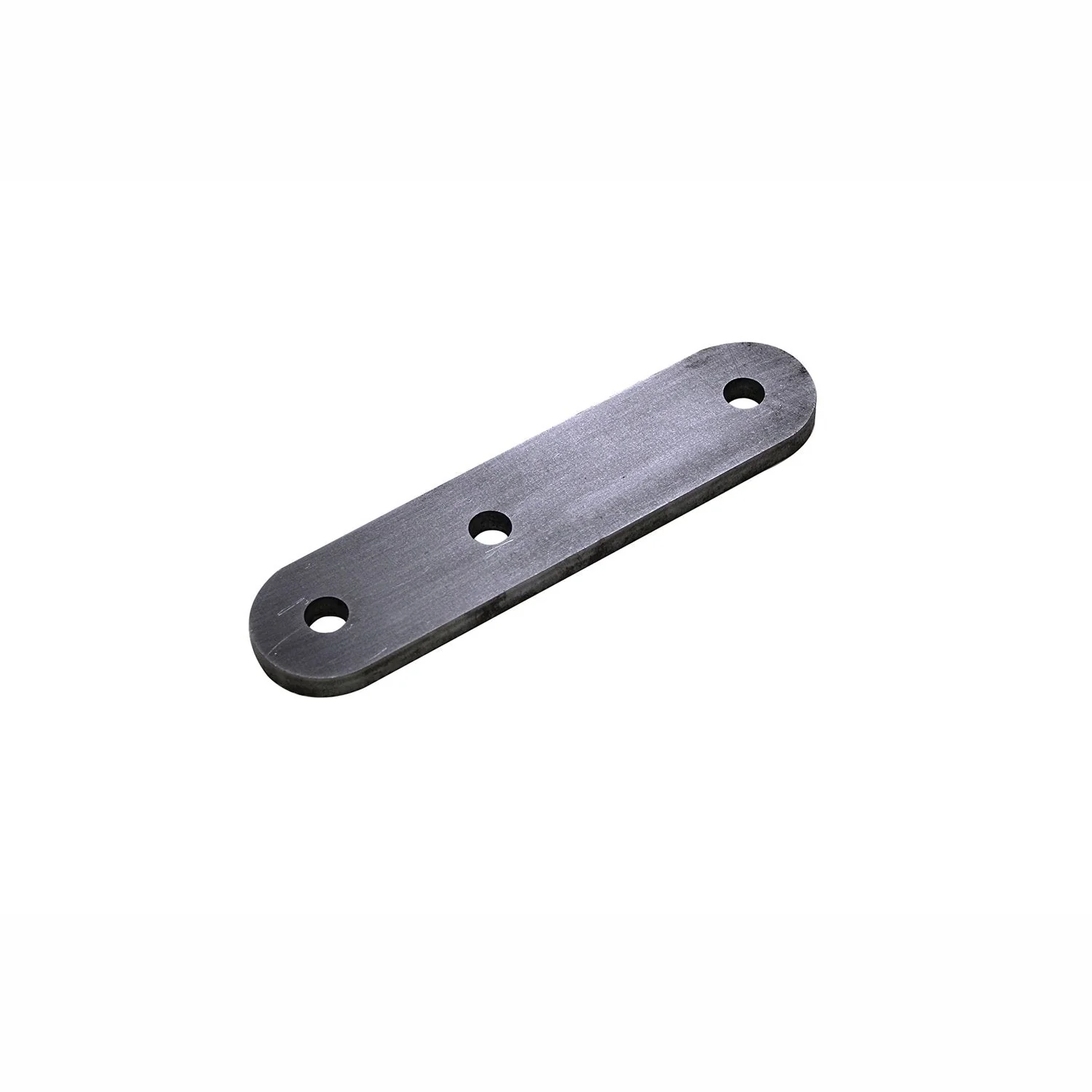

The Motobilt shackle plates are made out of 3/8 inch thick steel plate that is cnc laser cut. Each shackle plate uses 1/2 inch holes and a 3rd middle hole that can be used as a tie plate.
A small tube would be cut to length and installed in the middle hole with a 1/2 inch bolt to increase the rigidity in some applications. Measurements are the span from centers on each hole.
Features:
- 6 Inch Straight Leaf Spring Shackle
- Straight long shackle 6 inch
- 3/8 inch thick steel plate
- Shackle plate uses 1/2 inch holes and a 3rd middle hole
- Sold as a pair (2 plates)
Note:
- Small tube would be cut to length and installed in the middle hole with a 1/2 inch bolt to increase the rigidity in some applications
- Measurements are the span from centers on each hole
Specifications:
| Country of Origin | US |
| Sold As | Pair |
| Availability | Available |
| Hardware Included | No |
| Thickness | 3/8 Inch |
| Universal | No |
