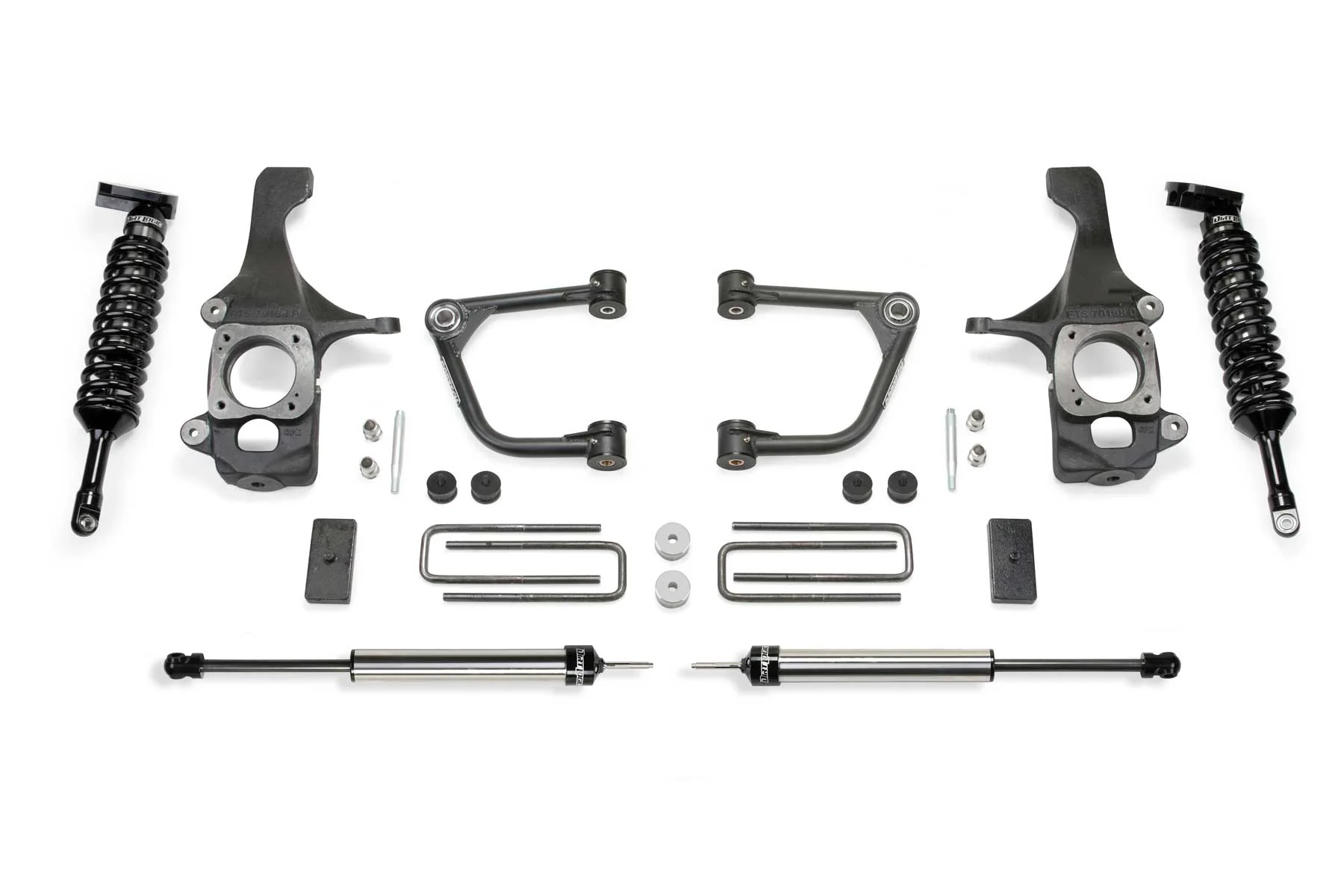

This 4in System capitalizes on Toyota Tundra's large wheelwell opening to allow use of 35in tall tires with minimum lift height. The design of this 4in System is a new style of suspension that delivers improved performance with fewer parts, and comes with an affordable price. The system includes replacement upper control arms constructed with .120in wall 4130 Chromoly and 1in FK Stainless Uniballs. Heavy duty extended length steering knuckles are included to provide proper functionality of the factory ESC (Electronic Stability Control) with 35in tall tires. The knuckles retain the stock track width keeping the tires under the front fenders. The front differential is relocated to keep CV angles proper during the full range of travel. Front bump stop extensions and brake hose relocation brackets complete the front suspension. Rear lift comes from a 1in lift block and u-bolt system to level the stance of the vehicle. The 4in System is available with Dirt Logic 2.50 front Coilovers and rear Dirt Logic 2.25 shocks for increased travel and aggressive offroad driving.

Specifications:

California Proposition 65	WARNING: Cancer & Reproductive Harm and image
Title	Fabtech 4" UCA KIT W/ UNIBALLS & DLSS 2.5C/O & RR DLSS 2016-21 TOYOTA TUNDRA 2WD/4WD
Description_ASC	TIRE SIZE - 35/12.50R18 WHEEL - 18X9 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/65R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/70R18 WHEEL - 18X9 W/4 1/2" BS W/MINOR TRIMMING; 14. CAN NOT USE OEM WHEEL AND TIRE.; 114. WILL NOT ALLOW USE OF 17 IN. WHEELS.
Description_DEF	Suspension Lift Kit
Description_DES	4" UCA KIT W/ UNIBALLS & DLSS 2.5C/O & RR DLSS 2016-21 TOYOTA TUNDRA 2WD/4WD
Description_EXT	4" UCA KIT W/ UNIBALLS & DLSS 2.5C/O & RR DLSS 2016-21 TOYOTA TUNDRA 2WD/4WD.
Description_INV	Fabtech-4" UCA KIT W/ UNIBAL
Description_MKT	This 4in System capitalizes on Toyota Tundra's large wheelwell opening to allow use of 35in tall tires with minimum lift height. The design of this 4in System is a new style of suspension that delivers improved performance with fewer parts, and comes with an affordable price. The system includes replacement upper control arms constructed with .120in wall 4130 Chromoly and 1in FK Stainless Uniballs. Heavy duty extended length steering knuckles are included to provide proper functionality of the factory ESC (Electronic Stability Control) with 35in tall tires. The knuckles retain the stock track width keeping the tires under the front fenders. The front differential is relocated to keep CV angles proper during the full range of travel. Front bump stop extensions and brake hose relocation brackets complete the front suspension. Rear lift comes from a 1in lift block and u-bolt system to level the stance of the vehicle. The 4in System is available with Dirt Logic 2.50 front Coilovers and rear Dirt Logic 2.25 shocks for increased travel and aggressive offroad driving.
Description_SHO	4" UCA KIT W/ UNIBAL

This Part Fits:

Year	Make	Model	Submodel	Notes
2020	Toyota	Tundra	Base
2021	Toyota	Tundra	Base
2017	Toyota	Tundra	Ltd
2021	Toyota	Tundra	Nightshade
2020	Toyota	Tundra	TRD Off-Road
2020	Toyota	Tundra	TRD Pro
2020	Toyota	Tundra	TRD Sport
2021	Toyota	Tundra	TRD Sport Premium
